#include <pbft_sync_packet_handler.hpp>

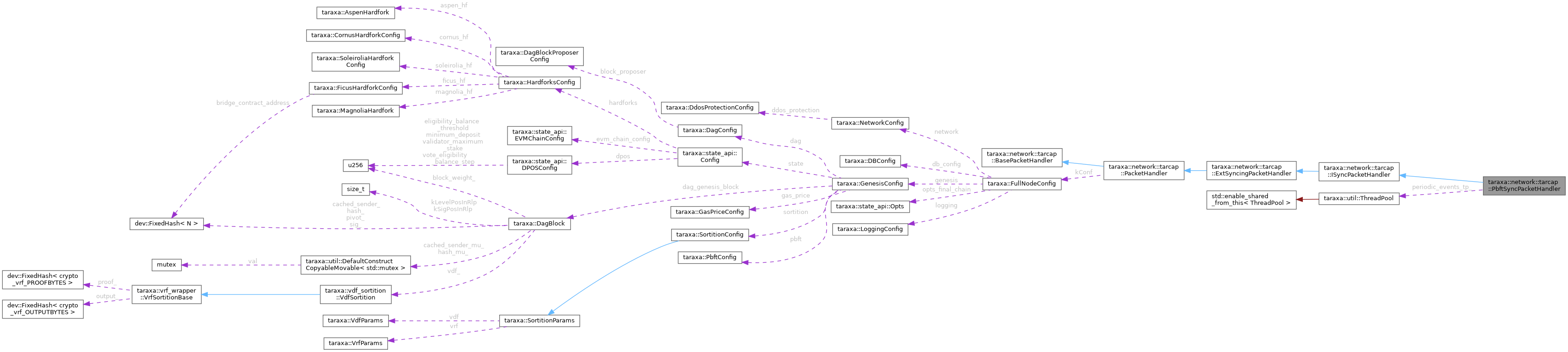

Collaboration diagram for taraxa::network::tarcap::PbftSyncPacketHandler:

[legend]

Public Member Functions
	PbftSyncPacketHandler (const FullNodeConfig &conf, std::shared_ptr< PeersState > peers_state, std::shared_ptr< TimePeriodPacketsStats > packets_stats, std::shared_ptr< PbftSyncingState > pbft_syncing_state, std::shared_ptr< PbftChain > pbft_chain, std::shared_ptr< PbftManager > pbft_mgr, std::shared_ptr< DagManager > dag_mgr, std::shared_ptr< VoteManager > vote_mgr, std::shared_ptr< DbStorage > db, const addr_t &node_addr, const std::string &logs_prefix="PBFT_SYNC_PH")

void	handleMaliciousSyncPeer (const dev::p2p::NodeID &id)

Public Member Functions inherited from taraxa::network::tarcap::ExtSyncingPacketHandler
	ExtSyncingPacketHandler (const FullNodeConfig &conf, std::shared_ptr< PeersState > peers_state, std::shared_ptr< TimePeriodPacketsStats > packets_stats, std::shared_ptr< PbftSyncingState > pbft_syncing_state, std::shared_ptr< PbftChain > pbft_chain, std::shared_ptr< PbftManager > pbft_mgr, std::shared_ptr< DagManager > dag_mgr, std::shared_ptr< DbStorage > db, const addr_t &node_addr, const std::string &log_channel_name)

virtual	~ExtSyncingPacketHandler ()=default

ExtSyncingPacketHandler &	operator= (const ExtSyncingPacketHandler &)=delete

ExtSyncingPacketHandler &	operator= (ExtSyncingPacketHandler &&)=delete

void	startSyncingPbft ()
	Start syncing pbft if needed. More...

bool	syncPeerPbft (PbftPeriod request_period)
	Send sync request to the current syncing peer with specified request_period. More...

void	requestDagBlocks (const dev::p2p::NodeID &_nodeID, const std::unordered_set< blk_hash_t > &blocks, PbftPeriod period)

void	requestPendingDagBlocks (std::shared_ptr< TaraxaPeer > peer=nullptr)

std::shared_ptr< TaraxaPeer >	getMaxChainPeer (std::function< bool(const std::shared_ptr< TaraxaPeer > &)> filter_func=[](const std::shared_ptr< TaraxaPeer > &) { return true;})

Public Member Functions inherited from taraxa::network::tarcap::PacketHandler
	PacketHandler (const FullNodeConfig &conf, std::shared_ptr< PeersState > peers_state, std::shared_ptr< TimePeriodPacketsStats > packets_stats, const addr_t &node_addr, const std::string &log_channel_name)

virtual	~PacketHandler ()=default

	PacketHandler (const PacketHandler &)=default

	PacketHandler (PacketHandler &&)=default

PacketHandler &	operator= (const PacketHandler &)=delete

PacketHandler &	operator= (PacketHandler &&)=delete

void	processPacket (const threadpool::PacketData &packet_data)
	Packet processing function wrapper that logs packet stats and calls process function. More...

void	requestPbftNextVotesAtPeriodRound (const dev::p2p::NodeID &peerID, PbftPeriod pbft_period, PbftRound pbft_round)

Static Public Attributes
static constexpr SubprotocolPacketType	kPacketType_ = SubprotocolPacketType::PbftSyncPacket

Protected Member Functions
virtual PeriodData	decodePeriodData (const dev::RLP &period_data_rlp) const

virtual std::vector< std::shared_ptr< PbftVote > >	decodeVotesBundle (const dev::RLP &votes_bundle_rlp) const

void	pbftSyncComplete ()

void	delayedPbftSync (int counter)

Protected Member Functions inherited from taraxa::network::tarcap::PacketHandler
void	checkPacketRlpIsList (const threadpool::PacketData &packet_data) const
	Checks if packet rlp is a list, if not it throws InvalidRlpItemsCountException. More...

bool	sealAndSend (const dev::p2p::NodeID &nodeID, SubprotocolPacketType packet_type, dev::RLPStream &&rlp)

void	disconnect (const dev::p2p::NodeID &node_id, dev::p2p::DisconnectReason reason)

Protected Attributes
std::shared_ptr< VoteManager >	vote_mgr_

util::ThreadPool	periodic_events_tp_

Protected Attributes inherited from taraxa::network::tarcap::ExtSyncingPacketHandler
std::shared_ptr< PbftSyncingState >	pbft_syncing_state_ {nullptr}

std::shared_ptr< PbftChain >	pbft_chain_ {nullptr}

std::shared_ptr< PbftManager >	pbft_mgr_ {nullptr}

std::shared_ptr< DagManager >	dag_mgr_ {nullptr}

std::shared_ptr< DbStorage >	db_ {nullptr}

Protected Attributes inherited from taraxa::network::tarcap::PacketHandler
const FullNodeConfig &	kConf

std::shared_ptr< PeersState >	peers_state_ {nullptr}

std::shared_ptr< TimePeriodPacketsStats >	packets_stats_

Static Protected Attributes
static constexpr uint32_t	kDelayedPbftSyncDelayMs = 10

static constexpr size_t	kStandardPacketSize = 2

static constexpr size_t	kChainSyncedPacketSize = 3

Private Member Functions
virtual void	validatePacketRlpFormat (const threadpool::PacketData &packet_data) const override
	Validates packet rlp format - items count. More...

virtual void	process (const threadpool::PacketData &packet_data, const std::shared_ptr< TaraxaPeer > &peer) override
	Main packet processing function. More...

Constructor & Destructor Documentation

◆ PbftSyncPacketHandler()

taraxa::network::tarcap::PbftSyncPacketHandler::PbftSyncPacketHandler	(	const FullNodeConfig &	conf,
		std::shared_ptr< PeersState >	peers_state,
		std::shared_ptr< TimePeriodPacketsStats >	packets_stats,
		std::shared_ptr< PbftSyncingState >	pbft_syncing_state,
		std::shared_ptr< PbftChain >	pbft_chain,
		std::shared_ptr< PbftManager >	pbft_mgr,
		std::shared_ptr< DagManager >	dag_mgr,
		std::shared_ptr< VoteManager >	vote_mgr,
		std::shared_ptr< DbStorage >	db,
		const addr_t &	node_addr,
		const std::string &	logs_prefix = `"PBFT_SYNC_PH"`
	)

Member Function Documentation

◆ decodePeriodData()

PeriodData taraxa::network::tarcap::PbftSyncPacketHandler::decodePeriodData ( const dev::RLP & period_data_rlp ) const

protectedvirtual

◆ decodeVotesBundle()

std::vector< std::shared_ptr< PbftVote > > taraxa::network::tarcap::PbftSyncPacketHandler::decodeVotesBundle ( const dev::RLP & votes_bundle_rlp ) const

protectedvirtual

◆ delayedPbftSync()

void taraxa::network::tarcap::PbftSyncPacketHandler::delayedPbftSync ( int counter )

protected

◆ handleMaliciousSyncPeer()

void taraxa::network::tarcap::PbftSyncPacketHandler::handleMaliciousSyncPeer ( const dev::p2p::NodeID & id )

◆ pbftSyncComplete()

void taraxa::network::tarcap::PbftSyncPacketHandler::pbftSyncComplete ( )

protected

◆ process()

void taraxa::network::tarcap::PbftSyncPacketHandler::process	(	const threadpool::PacketData &	packet_data,
		const std::shared_ptr< TaraxaPeer > &	peer
	)

overrideprivatevirtual

Main packet processing function.

Implements taraxa::network::tarcap::PacketHandler.

◆ validatePacketRlpFormat()

void taraxa::network::tarcap::PbftSyncPacketHandler::validatePacketRlpFormat ( const threadpool::PacketData & packet_data ) const

overrideprivatevirtual

Validates packet rlp format - items count.

Exceptions

InvalidRlpItemsCountException exception

Implements taraxa::network::tarcap::PacketHandler.

Member Data Documentation

◆ kChainSyncedPacketSize

constexpr size_t taraxa::network::tarcap::PbftSyncPacketHandler::kChainSyncedPacketSize = 3

staticconstexprprotected

◆ kDelayedPbftSyncDelayMs

constexpr uint32_t taraxa::network::tarcap::PbftSyncPacketHandler::kDelayedPbftSyncDelayMs = 10

staticconstexprprotected

◆ kPacketType_

constexpr SubprotocolPacketType taraxa::network::tarcap::PbftSyncPacketHandler::kPacketType_ = SubprotocolPacketType::PbftSyncPacket

staticconstexpr

◆ kStandardPacketSize

constexpr size_t taraxa::network::tarcap::PbftSyncPacketHandler::kStandardPacketSize = 2

staticconstexprprotected

◆ periodic_events_tp_

util::ThreadPool taraxa::network::tarcap::PbftSyncPacketHandler::periodic_events_tp_

protected

◆ vote_mgr_

std::shared_ptr<VoteManager> taraxa::network::tarcap::PbftSyncPacketHandler::vote_mgr_

protected

The documentation for this class was generated from the following files:

libraries/core_libs/network/include/network/tarcap/packets_handlers/latest/pbft_sync_packet_handler.hpp
libraries/core_libs/network/src/tarcap/packets_handlers/latest/pbft_sync_packet_handler.cpp
