ExtSyncingPacketHandler is extended abstract PacketHandler with added functions that are used in packet handlers that need to interact with syncing process in some way. More...

#include <ext_syncing_packet_handler.hpp>

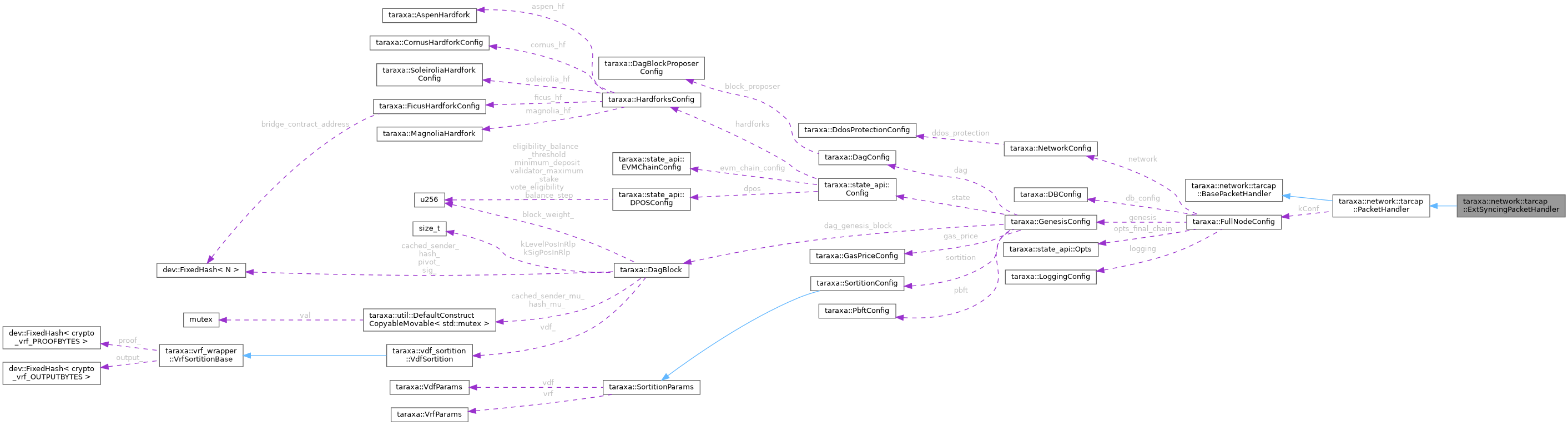

Collaboration diagram for taraxa::network::tarcap::ExtSyncingPacketHandler:

[legend]

Public Member Functions
	ExtSyncingPacketHandler (const FullNodeConfig &conf, std::shared_ptr< PeersState > peers_state, std::shared_ptr< TimePeriodPacketsStats > packets_stats, std::shared_ptr< PbftSyncingState > pbft_syncing_state, std::shared_ptr< PbftChain > pbft_chain, std::shared_ptr< PbftManager > pbft_mgr, std::shared_ptr< DagManager > dag_mgr, std::shared_ptr< DbStorage > db, const addr_t &node_addr, const std::string &log_channel_name)

virtual	~ExtSyncingPacketHandler ()=default

ExtSyncingPacketHandler &	operator= (const ExtSyncingPacketHandler &)=delete

ExtSyncingPacketHandler &	operator= (ExtSyncingPacketHandler &&)=delete

void	startSyncingPbft ()
	Start syncing pbft if needed. More...

bool	syncPeerPbft (PbftPeriod request_period)
	Send sync request to the current syncing peer with specified request_period. More...

void	requestDagBlocks (const dev::p2p::NodeID &_nodeID, const std::unordered_set< blk_hash_t > &blocks, PbftPeriod period)

void	requestPendingDagBlocks (std::shared_ptr< TaraxaPeer > peer=nullptr)

std::shared_ptr< TaraxaPeer >	getMaxChainPeer (std::function< bool(const std::shared_ptr< TaraxaPeer > &)> filter_func=[](const std::shared_ptr< TaraxaPeer > &) { return true;})

Public Member Functions inherited from taraxa::network::tarcap::PacketHandler
	PacketHandler (const FullNodeConfig &conf, std::shared_ptr< PeersState > peers_state, std::shared_ptr< TimePeriodPacketsStats > packets_stats, const addr_t &node_addr, const std::string &log_channel_name)

virtual	~PacketHandler ()=default

	PacketHandler (const PacketHandler &)=default

	PacketHandler (PacketHandler &&)=default

PacketHandler &	operator= (const PacketHandler &)=delete

PacketHandler &	operator= (PacketHandler &&)=delete

void	processPacket (const threadpool::PacketData &packet_data)
	Packet processing function wrapper that logs packet stats and calls process function. More...

void	requestPbftNextVotesAtPeriodRound (const dev::p2p::NodeID &peerID, PbftPeriod pbft_period, PbftRound pbft_round)

Protected Attributes
std::shared_ptr< PbftSyncingState >	pbft_syncing_state_ {nullptr}

std::shared_ptr< PbftChain >	pbft_chain_ {nullptr}

std::shared_ptr< PbftManager >	pbft_mgr_ {nullptr}

std::shared_ptr< DagManager >	dag_mgr_ {nullptr}

std::shared_ptr< DbStorage >	db_ {nullptr}

Protected Attributes inherited from taraxa::network::tarcap::PacketHandler
const FullNodeConfig &	kConf

std::shared_ptr< PeersState >	peers_state_ {nullptr}

std::shared_ptr< TimePeriodPacketsStats >	packets_stats_

Additional Inherited Members
Protected Member Functions inherited from taraxa::network::tarcap::PacketHandler
void	checkPacketRlpIsList (const threadpool::PacketData &packet_data) const
	Checks if packet rlp is a list, if not it throws InvalidRlpItemsCountException. More...

bool	sealAndSend (const dev::p2p::NodeID &nodeID, SubprotocolPacketType packet_type, dev::RLPStream &&rlp)

void	disconnect (const dev::p2p::NodeID &node_id, dev::p2p::DisconnectReason reason)

Detailed Description

ExtSyncingPacketHandler is extended abstract PacketHandler with added functions that are used in packet handlers that need to interact with syncing process in some way.

Constructor & Destructor Documentation

◆ ExtSyncingPacketHandler()

taraxa::network::tarcap::ExtSyncingPacketHandler::ExtSyncingPacketHandler	(	const FullNodeConfig &	conf,
		std::shared_ptr< PeersState >	peers_state,
		std::shared_ptr< TimePeriodPacketsStats >	packets_stats,
		std::shared_ptr< PbftSyncingState >	pbft_syncing_state,
		std::shared_ptr< PbftChain >	pbft_chain,
		std::shared_ptr< PbftManager >	pbft_mgr,
		std::shared_ptr< DagManager >	dag_mgr,
		std::shared_ptr< DbStorage >	db,
		const addr_t &	node_addr,
		const std::string &	log_channel_name
	)

◆ ~ExtSyncingPacketHandler()

virtual taraxa::network::tarcap::ExtSyncingPacketHandler::~ExtSyncingPacketHandler ( )

virtualdefault

Member Function Documentation

◆ getMaxChainPeer()

std::shared_ptr< TaraxaPeer > taraxa::network::tarcap::ExtSyncingPacketHandler::getMaxChainPeer ( std::function< bool(const std::shared_ptr< TaraxaPeer > &)> filter_func = [](const std::shared_ptr<TaraxaPeer> &) { return true; } )

◆ operator=() [1/2]

ExtSyncingPacketHandler& taraxa::network::tarcap::ExtSyncingPacketHandler::operator= ( const ExtSyncingPacketHandler & )

delete

◆ operator=() [2/2]

ExtSyncingPacketHandler& taraxa::network::tarcap::ExtSyncingPacketHandler::operator= ( ExtSyncingPacketHandler && )

delete

◆ requestDagBlocks()

void taraxa::network::tarcap::ExtSyncingPacketHandler::requestDagBlocks	(	const dev::p2p::NodeID &	_nodeID,
		const std::unordered_set< blk_hash_t > &	blocks,
		PbftPeriod	period
	)

◆ requestPendingDagBlocks()

void taraxa::network::tarcap::ExtSyncingPacketHandler::requestPendingDagBlocks ( std::shared_ptr< TaraxaPeer > peer = nullptr )

◆ startSyncingPbft()

void taraxa::network::tarcap::ExtSyncingPacketHandler::startSyncingPbft ( )

Start syncing pbft if needed.

◆ syncPeerPbft()

bool taraxa::network::tarcap::ExtSyncingPacketHandler::syncPeerPbft ( PbftPeriod request_period )

Send sync request to the current syncing peer with specified request_period.

Parameters

request_period

Returns: true if sync request was sent, otherwise false

Member Data Documentation

◆ dag_mgr_

std::shared_ptr<DagManager> taraxa::network::tarcap::ExtSyncingPacketHandler::dag_mgr_ {nullptr}

protected

◆ db_

std::shared_ptr<DbStorage> taraxa::network::tarcap::ExtSyncingPacketHandler::db_ {nullptr}

protected

◆ pbft_chain_

std::shared_ptr<PbftChain> taraxa::network::tarcap::ExtSyncingPacketHandler::pbft_chain_ {nullptr}

protected

◆ pbft_mgr_

std::shared_ptr<PbftManager> taraxa::network::tarcap::ExtSyncingPacketHandler::pbft_mgr_ {nullptr}

protected

◆ pbft_syncing_state_

std::shared_ptr<PbftSyncingState> taraxa::network::tarcap::ExtSyncingPacketHandler::pbft_syncing_state_ {nullptr}

protected

The documentation for this class was generated from the following files:

libraries/core_libs/network/include/network/tarcap/packets_handlers/latest/common/ext_syncing_packet_handler.hpp
libraries/core_libs/network/src/tarcap/packets_handlers/latest/common/ext_syncing_packet_handler.cpp
