Setup inbound or outbound connection for communication over RLPXFrameCoder. RLPx Spec: https://github.com/ethereum/devp2p/blob/master/rlpx.md#encrypted-handshake. More...

#include <RLPxHandshake.h>

Collaboration diagram for dev::p2p::RLPXHandshake:

[legend]

Classes
struct	HostContext

Public Member Functions
	RLPXHandshake (std::shared_ptr< HostContext const > ctx, std::shared_ptr< RLPXSocket > const &_socket)
	Setup incoming connection. More...

	RLPXHandshake (std::shared_ptr< HostContext const > ctx, std::shared_ptr< RLPXSocket > const &_socket, NodeID _remote)
	Setup outbound connection. More...

void	start ()
	Start handshake. More...

void	cancel ()
	Aborts the handshake. More...

NodeID	remote () const

Private Types
enum	State { Error = -1 , New , AckAuth , AckAuthEIP8 , WriteHello , ReadHello , StartSession }
	Sequential states of handshake. More...

Private Member Functions
void	writeAuth ()
	Write Auth message to socket and transitions to AckAuth. More...

void	readAuth ()
	Reads Auth message from socket and transitions to AckAuth. More...

void	readAuthEIP8 ()

void	setAuthValues (Signature const &sig, Public const &remotePubk, h256 const &remoteNonce, uint64_t remoteVersion)

void	writeAck ()
	Write Ack message to socket and transitions to WriteHello. More...

void	writeAckEIP8 ()
	Write Ack message in EIP-8 format to socket and transitions to WriteHello. More...

void	readAck ()
	Reads Auth message from socket and transitions to WriteHello. More...

void	readAckEIP8 ()

void	error (boost::system::error_code _ech={})
	Closes connection and ends transitions. More...

void	transition (boost::system::error_code _ech={})
	Performs transition for m_nextState. More...

char const *	connectionDirectionString () const
	Get a string indicating if the connection is incoming or outgoing. More...

bool	remoteSocketConnected () const
	Determine if the remote socket is still connected. More...

Private Attributes
State	m_nextState = New
	Current or expected state of transition. More...

bool	m_cancel = false
	Will be set to true if connection was canceled. More...

std::shared_ptr< HostContext const >	host_ctx_

NodeID	m_remote
	Node id of remote host for socket. More...

bool	m_originated = false
	True if connection is outbound. More...

bytes	m_auth
	Buffers for encoded and decoded handshake phases. More...

bytes	m_authCipher
	Ciphertext of egress or ingress Auth message. More...

bytes	m_ack
	Plaintext of egress or ingress Ack message. More...

bytes	m_ackCipher
	Ciphertext of egress or ingress Ack message. More...

bytes	m_handshakeOutBuffer
	Frame buffer for egress Hello packet. More...

bytes	m_handshakeInBuffer
	Frame buffer for ingress Hello packet. More...

KeyPair	m_ecdheLocal = KeyPair::create()
	Ephemeral ECDH secret and agreement. More...

h256	m_nonce
	Nonce generated by this host for handshake. More...

Public	m_ecdheRemote
	Remote ephemeral public key. More...

h256	m_remoteNonce
	Nonce generated by remote host for handshake. More...

uint64_t	m_remoteVersion

std::unique_ptr< RLPXFrameCoder >	m_io

std::shared_ptr< RLPXSocket >	m_socket

ba::steady_timer	m_idleTimer
	Timer which enforces c_timeout. Reset for each stage of the handshake. More...

HandshakeFailureReason	m_failureReason

Logger	m_logger {createLogger(VerbosityTrace, "rlpx")}

Logger	m_errorLogger {createLogger(VerbosityError, "rlpx")}

Static Private Attributes
static constexpr std::chrono::milliseconds	c_timeout {1800}

Friends
class	RLPXFrameCoder

Detailed Description

Setup inbound or outbound connection for communication over RLPXFrameCoder. RLPx Spec: https://github.com/ethereum/devp2p/blob/master/rlpx.md#encrypted-handshake.

Todo:: Implement StartSession transition via lambda which is passed to constructor.

Thread Safety Distinct Objects: Safe. Shared objects: Unsafe.

Class Documentation

◆ dev::p2p::RLPXHandshake::HostContext

struct dev::p2p::RLPXHandshake::HostContext

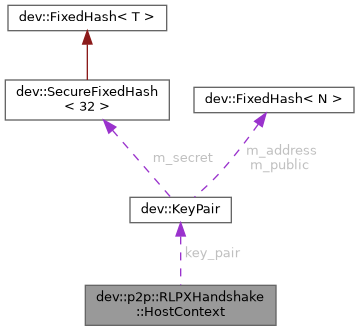

Collaboration diagram for dev::p2p::RLPXHandshake::HostContext:

[legend]

Class Members
CapDescs	capability_descriptions
string	client_version
KeyPair	key_pair
function< void(NodeID const &, HandshakeFailureReason)>	on_failure
function< void(Public const &, RLP const &, unique_ptr< RLPXFrameCoder >, shared_ptr< RLPXSocket > const &)>	on_success
unsigned	port

Member Enumeration Documentation

◆ State

enum dev::p2p::RLPXHandshake::State

private

Sequential states of handshake.

Enumerator
Error
New
AckAuth
AckAuthEIP8
WriteHello
ReadHello
StartSession

Constructor & Destructor Documentation

◆ RLPXHandshake() [1/2]

RLPXHandshake::RLPXHandshake	(	std::shared_ptr< HostContext const >	ctx,
		std::shared_ptr< RLPXSocket > const &	_socket
	)

Setup incoming connection.

◆ RLPXHandshake() [2/2]

RLPXHandshake::RLPXHandshake	(	std::shared_ptr< HostContext const >	ctx,
		std::shared_ptr< RLPXSocket > const &	_socket,
		NodeID	_remote
	)

Setup outbound connection.

Member Function Documentation

◆ cancel()

void RLPXHandshake::cancel ( )

Aborts the handshake.

◆ connectionDirectionString()

char const* dev::p2p::RLPXHandshake::connectionDirectionString ( ) const

inlineprivate

Get a string indicating if the connection is incoming or outgoing.

◆ error()

void RLPXHandshake::error ( boost::system::error_code _ech = {} )

private

Closes connection and ends transitions.

◆ readAck()

void RLPXHandshake::readAck ( )

private

Reads Auth message from socket and transitions to WriteHello.

◆ readAckEIP8()

void RLPXHandshake::readAckEIP8 ( )

private

Continues reading Ack message in EIP-8 format and transitions to WriteHello.

◆ readAuth()

void RLPXHandshake::readAuth ( )

private

Reads Auth message from socket and transitions to AckAuth.

◆ readAuthEIP8()

void RLPXHandshake::readAuthEIP8 ( )

private

Continues reading Auth message in EIP-8 format and transitions to AckAuthEIP8.

◆ remote()

NodeID dev::p2p::RLPXHandshake::remote ( ) const

inline

◆ remoteSocketConnected()

bool RLPXHandshake::remoteSocketConnected ( ) const

private

Determine if the remote socket is still connected.

◆ setAuthValues()

void RLPXHandshake::setAuthValues	(	Signature const &	sig,
		Public const &	remotePubk,
		h256 const &	remoteNonce,
		uint64_t	remoteVersion
	)

private

Derives ephemeral secret from signature and sets members after Auth has been decrypted.

◆ start()

void dev::p2p::RLPXHandshake::start ( )

inline

Start handshake.

◆ transition()

void RLPXHandshake::transition ( boost::system::error_code _ech = {} )

private

Performs transition for m_nextState.

This pointer will be freed if there is an error otherwise it will be passed to Host which will take ownership.

authenticate and decrypt header

check frame size

rlp of header has protocol-type, sequence-id[, total-packet-size]

read padded frame and mac

◆ writeAck()

void RLPXHandshake::writeAck ( )

private

Write Ack message to socket and transitions to WriteHello.

◆ writeAckEIP8()

void RLPXHandshake::writeAckEIP8 ( )

private

Write Ack message in EIP-8 format to socket and transitions to WriteHello.

◆ writeAuth()

void RLPXHandshake::writeAuth ( )

private

Write Auth message to socket and transitions to AckAuth.

Friends And Related Function Documentation

◆ RLPXFrameCoder

friend class RLPXFrameCoder

friend

Member Data Documentation

◆ c_timeout

constexpr std::chrono::milliseconds RLPXHandshake::c_timeout {1800}

staticconstexprprivate

Timeout for a stage in the handshake to complete (the remote to respond to transition events). Enforced by m_idleTimer and refreshed by transition().

◆ host_ctx_

std::shared_ptr<HostContext const> dev::p2p::RLPXHandshake::host_ctx_

private

◆ m_ack

bytes dev::p2p::RLPXHandshake::m_ack

private

Plaintext of egress or ingress Ack message.

◆ m_ackCipher

bytes dev::p2p::RLPXHandshake::m_ackCipher

private

Ciphertext of egress or ingress Ack message.

◆ m_auth

bytes dev::p2p::RLPXHandshake::m_auth

private

Buffers for encoded and decoded handshake phases.

Plaintext of egress or ingress Auth message.

◆ m_authCipher

bytes dev::p2p::RLPXHandshake::m_authCipher

private

Ciphertext of egress or ingress Auth message.

◆ m_cancel

bool dev::p2p::RLPXHandshake::m_cancel = false

private

Will be set to true if connection was canceled.

◆ m_ecdheLocal

KeyPair dev::p2p::RLPXHandshake::m_ecdheLocal = KeyPair::create()

private

Ephemeral ECDH secret and agreement.

◆ m_ecdheRemote

Public dev::p2p::RLPXHandshake::m_ecdheRemote

private

Remote ephemeral public key.

◆ m_errorLogger

Logger dev::p2p::RLPXHandshake::m_errorLogger {createLogger(VerbosityError, "rlpx")}

private

◆ m_failureReason

HandshakeFailureReason dev::p2p::RLPXHandshake::m_failureReason

private

◆ m_handshakeInBuffer

bytes dev::p2p::RLPXHandshake::m_handshakeInBuffer

private

Frame buffer for ingress Hello packet.

◆ m_handshakeOutBuffer

bytes dev::p2p::RLPXHandshake::m_handshakeOutBuffer

private

Frame buffer for egress Hello packet.

◆ m_idleTimer

ba::steady_timer dev::p2p::RLPXHandshake::m_idleTimer

private

Timer which enforces c_timeout. Reset for each stage of the handshake.

◆ m_io

std::unique_ptr<RLPXFrameCoder> dev::p2p::RLPXHandshake::m_io

private

Used to read and write RLPx encrypted frames for last step of handshake authentication. Passed onto Host which will take ownership.

◆ m_logger

Logger dev::p2p::RLPXHandshake::m_logger {createLogger(VerbosityTrace, "rlpx")}

private

◆ m_nextState

State dev::p2p::RLPXHandshake::m_nextState = New

private

Current or expected state of transition.

◆ m_nonce

h256 dev::p2p::RLPXHandshake::m_nonce

private

Nonce generated by this host for handshake.

◆ m_originated

bool dev::p2p::RLPXHandshake::m_originated = false

private

True if connection is outbound.

◆ m_remote

NodeID dev::p2p::RLPXHandshake::m_remote

private

Node id of remote host for socket.

Public address of remote host.

◆ m_remoteNonce

h256 dev::p2p::RLPXHandshake::m_remoteNonce

private

Nonce generated by remote host for handshake.

◆ m_remoteVersion

uint64_t dev::p2p::RLPXHandshake::m_remoteVersion

private

◆ m_socket

std::shared_ptr<RLPXSocket> dev::p2p::RLPXHandshake::m_socket

private

The documentation for this struct was generated from the following files:

libraries/aleth/libp2p/RLPxHandshake.h
libraries/aleth/libp2p/RLPxHandshake.cpp
