ExtVotesPacketHandler is extended abstract PacketHandler with added functions that are used in packet handlers that process pbft votes. More...

#include <ext_votes_packet_handler.hpp>

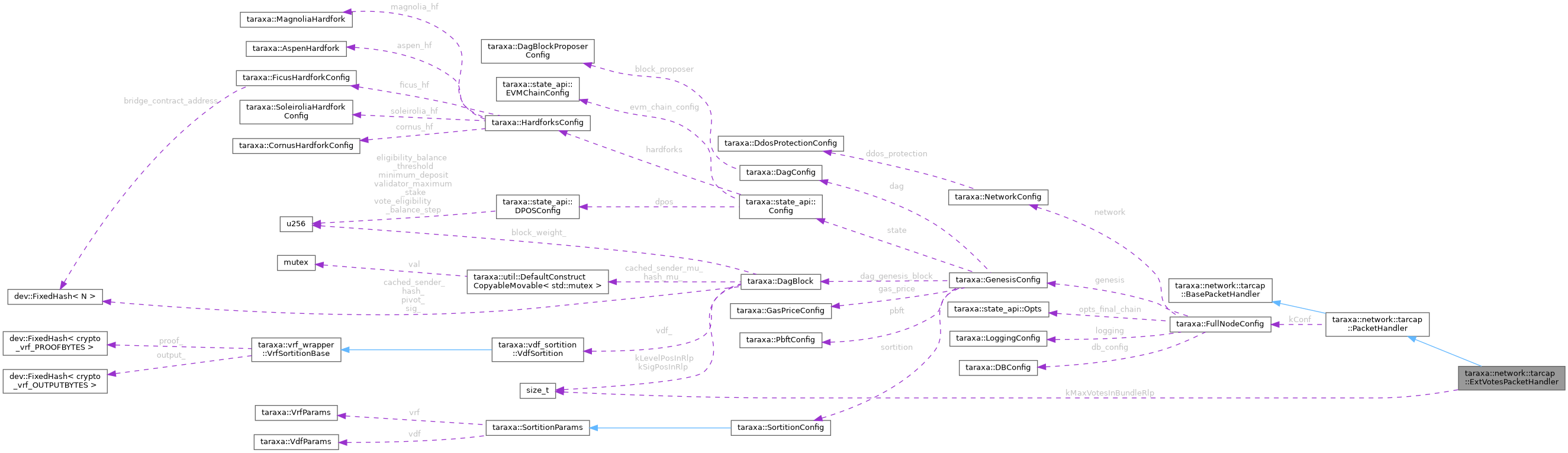

Collaboration diagram for taraxa::network::tarcap::ExtVotesPacketHandler:

[legend]

Public Member Functions
	ExtVotesPacketHandler (const FullNodeConfig &conf, std::shared_ptr< PeersState > peers_state, std::shared_ptr< TimePeriodPacketsStats > packets_stats, std::shared_ptr< PbftManager > pbft_mgr, std::shared_ptr< PbftChain > pbft_chain, std::shared_ptr< VoteManager > vote_mgr, std::shared_ptr< SlashingManager > slashing_manager, const std::string &log_channel_name)

virtual	~ExtVotesPacketHandler ()=default

	ExtVotesPacketHandler (const ExtVotesPacketHandler &)=delete

	ExtVotesPacketHandler (ExtVotesPacketHandler &&)=delete

ExtVotesPacketHandler &	operator= (const ExtVotesPacketHandler &)=delete

ExtVotesPacketHandler &	operator= (ExtVotesPacketHandler &&)=delete

bool	processVote (const std::shared_ptr< PbftVote > &vote, const std::shared_ptr< PbftBlock > &pbft_block, const std::shared_ptr< TaraxaPeer > &peer, bool validate_max_round_step)
	Process vote.

bool	isPbftRelevantVote (const std::shared_ptr< PbftVote > &vote) const
	Checks is vote is relevant for current pbft state in terms of period, round and type.

void	requestPbftNextVotesAtPeriodRound (const dev::p2p::NodeID &peerID, PbftPeriod pbft_period, PbftRound pbft_round)

Public Member Functions inherited from taraxa::network::tarcap::PacketHandler
	PacketHandler (const FullNodeConfig &conf, std::shared_ptr< PeersState > peers_state, std::shared_ptr< TimePeriodPacketsStats > packets_stats, const std::string &log_channel_name)

virtual	~PacketHandler ()=default

	PacketHandler (const PacketHandler &)=default

	PacketHandler (PacketHandler &&)=default

PacketHandler &	operator= (const PacketHandler &)=delete

PacketHandler &	operator= (PacketHandler &&)=delete

void	processPacket (const threadpool::PacketData &packet_data) override
	Packet processing function wrapper that logs packet stats and calls process function.

Public Member Functions inherited from taraxa::network::tarcap::BasePacketHandler
	BasePacketHandler ()=default

virtual	~BasePacketHandler ()=default

	BasePacketHandler (const BasePacketHandler &)=default

	BasePacketHandler (BasePacketHandler &&)=default

BasePacketHandler &	operator= (const BasePacketHandler &)=default

BasePacketHandler &	operator= (BasePacketHandler &&)=default

Protected Attributes
std::chrono::system_clock::time_point	last_votes_sync_request_time_

std::chrono::system_clock::time_point	last_pbft_block_sync_request_time_

std::shared_ptr< PbftManager >	pbft_mgr_

std::shared_ptr< PbftChain >	pbft_chain_

std::shared_ptr< VoteManager >	vote_mgr_

std::shared_ptr< SlashingManager >	slashing_manager_

Protected Attributes inherited from taraxa::network::tarcap::PacketHandler
const FullNodeConfig &	kConf

std::shared_ptr< PeersState >	peers_state_ {nullptr}

std::shared_ptr< TimePeriodPacketsStats >	packets_stats_

logger::Logger	logger_

Static Protected Attributes
static constexpr size_t	kMaxVotesInBundleRlp {1000}

static constexpr std::chrono::seconds	kSyncRequestInterval = std::chrono::seconds(10)

Private Member Functions
std::pair< bool, std::string >	validateVotePeriodRoundStep (const std::shared_ptr< PbftVote > &vote, const std::shared_ptr< TaraxaPeer > &peer, bool validate_max_round_step)
	Validates vote period, round and step against max values from config.

bool	validateVoteAndBlock (const std::shared_ptr< PbftVote > &vote, const std::shared_ptr< PbftBlock > &pbft_block) const
	Validates provided vote if voted value == provided block.

Additional Inherited Members
Protected Member Functions inherited from taraxa::network::tarcap::PacketHandler
bool	sealAndSend (const dev::p2p::NodeID &node_id, SubprotocolPacketType packet_type, dev::bytes &&rlp_bytes)

void	disconnect (const dev::p2p::NodeID &node_id, dev::p2p::DisconnectReason reason)

Detailed Description

ExtVotesPacketHandler is extended abstract PacketHandler with added functions that are used in packet handlers that process pbft votes.

Constructor & Destructor Documentation

◆ ExtVotesPacketHandler() [1/3]

taraxa::network::tarcap::ExtVotesPacketHandler::ExtVotesPacketHandler	(	const FullNodeConfig &	conf,
		std::shared_ptr< PeersState >	peers_state,
		std::shared_ptr< TimePeriodPacketsStats >	packets_stats,
		std::shared_ptr< PbftManager >	pbft_mgr,
		std::shared_ptr< PbftChain >	pbft_chain,
		std::shared_ptr< VoteManager >	vote_mgr,
		std::shared_ptr< SlashingManager >	slashing_manager,
		const std::string &	log_channel_name
	)

◆ ~ExtVotesPacketHandler()

virtual taraxa::network::tarcap::ExtVotesPacketHandler::~ExtVotesPacketHandler ( )

virtualdefault

◆ ExtVotesPacketHandler() [2/3]

taraxa::network::tarcap::ExtVotesPacketHandler::ExtVotesPacketHandler ( const ExtVotesPacketHandler & )

delete

◆ ExtVotesPacketHandler() [3/3]

taraxa::network::tarcap::ExtVotesPacketHandler::ExtVotesPacketHandler ( ExtVotesPacketHandler && )

delete

Member Function Documentation

◆ isPbftRelevantVote()

bool taraxa::network::tarcap::ExtVotesPacketHandler::isPbftRelevantVote ( const std::shared_ptr< PbftVote > & vote ) const

Checks is vote is relevant for current pbft state in terms of period, round and type.

Parameters

vote

Returns: true if vote is relevant for current pbft state, otherwise false

◆ operator=() [1/2]

ExtVotesPacketHandler & taraxa::network::tarcap::ExtVotesPacketHandler::operator= ( const ExtVotesPacketHandler & )

delete

◆ operator=() [2/2]

ExtVotesPacketHandler & taraxa::network::tarcap::ExtVotesPacketHandler::operator= ( ExtVotesPacketHandler && )

delete

◆ processVote()

bool taraxa::network::tarcap::ExtVotesPacketHandler::processVote	(	const std::shared_ptr< PbftVote > &	vote,
		const std::shared_ptr< PbftBlock > &	pbft_block,
		const std::shared_ptr< TaraxaPeer > &	peer,
		bool	validate_max_round_step
	)

Process vote.

Parameters

vote
pbft_block
peer
validate_max_round_step

Returns: if vote was successfully processed, otherwise false

◆ requestPbftNextVotesAtPeriodRound()

void taraxa::network::tarcap::ExtVotesPacketHandler::requestPbftNextVotesAtPeriodRound	(	const dev::p2p::NodeID &	peerID,
		PbftPeriod	pbft_period,
		PbftRound	pbft_round
	)

◆ validateVoteAndBlock()

bool taraxa::network::tarcap::ExtVotesPacketHandler::validateVoteAndBlock	(	const std::shared_ptr< PbftVote > &	vote,
		const std::shared_ptr< PbftBlock > &	pbft_block
	)		const

private

Validates provided vote if voted value == provided block.

Parameters

vote
pbft_block

Returns: true if validation successful, otherwise false

◆ validateVotePeriodRoundStep()

std::pair< bool, std::string > taraxa::network::tarcap::ExtVotesPacketHandler::validateVotePeriodRoundStep	(	const std::shared_ptr< PbftVote > &	vote,
		const std::shared_ptr< TaraxaPeer > &	peer,
		bool	validate_max_round_step
	)

private

Validates vote period, round and step against max values from config.

Parameters

vote	to be validated
peer
validate_max_round_step	validate also max round and step

Returns: <true, ""> vote validation passed, otherwise <false, "err msg">

Member Data Documentation

◆ kMaxVotesInBundleRlp

constexpr size_t taraxa::network::tarcap::ExtVotesPacketHandler::kMaxVotesInBundleRlp {1000}

staticconstexprprotected

◆ kSyncRequestInterval

constexpr std::chrono::seconds taraxa::network::tarcap::ExtVotesPacketHandler::kSyncRequestInterval = std::chrono::seconds(10)

staticconstexprprotected

◆ last_pbft_block_sync_request_time_

std::chrono::system_clock::time_point taraxa::network::tarcap::ExtVotesPacketHandler::last_pbft_block_sync_request_time_

mutableprotected

◆ last_votes_sync_request_time_

std::chrono::system_clock::time_point taraxa::network::tarcap::ExtVotesPacketHandler::last_votes_sync_request_time_

mutableprotected

◆ pbft_chain_

std::shared_ptr<PbftChain> taraxa::network::tarcap::ExtVotesPacketHandler::pbft_chain_

protected

◆ pbft_mgr_

std::shared_ptr<PbftManager> taraxa::network::tarcap::ExtVotesPacketHandler::pbft_mgr_

protected

◆ slashing_manager_

std::shared_ptr<SlashingManager> taraxa::network::tarcap::ExtVotesPacketHandler::slashing_manager_

protected

◆ vote_mgr_

std::shared_ptr<VoteManager> taraxa::network::tarcap::ExtVotesPacketHandler::vote_mgr_

protected

The documentation for this class was generated from the following files:

libraries/core_libs/network/include/network/tarcap/packets_handlers/latest/common/ext_votes_packet_handler.hpp
libraries/core_libs/network/src/tarcap/packets_handlers/latest/common/ext_votes_packet_handler.cpp
